Cold Pour, Hot Logic: candle tunneling, melt pools and the first-burn myth

The short answer: candle tunneling is a repeated burn pattern in which the candle consumes wax down the center while leaving a persistent wall of unmelted wax. An incomplete melt pool on the first burn is an observation, not an automatic failure. Judge the complete wax, fragrance, dye, wick and vessel combination across the candle's usable life—not from one photograph taken after an arbitrary number of hours.

This distinction matters because makers can over-wick a candle while chasing an immediate edge-to-edge melt pool. A wick that appears impressive near the top may create a deeper melt pool, taller flame, faster consumption or hotter vessel lower down. Conversely, some early wax hang-up can catch up during later burns. The goal is a controlled, repeatable burn, not the fastest possible pool.

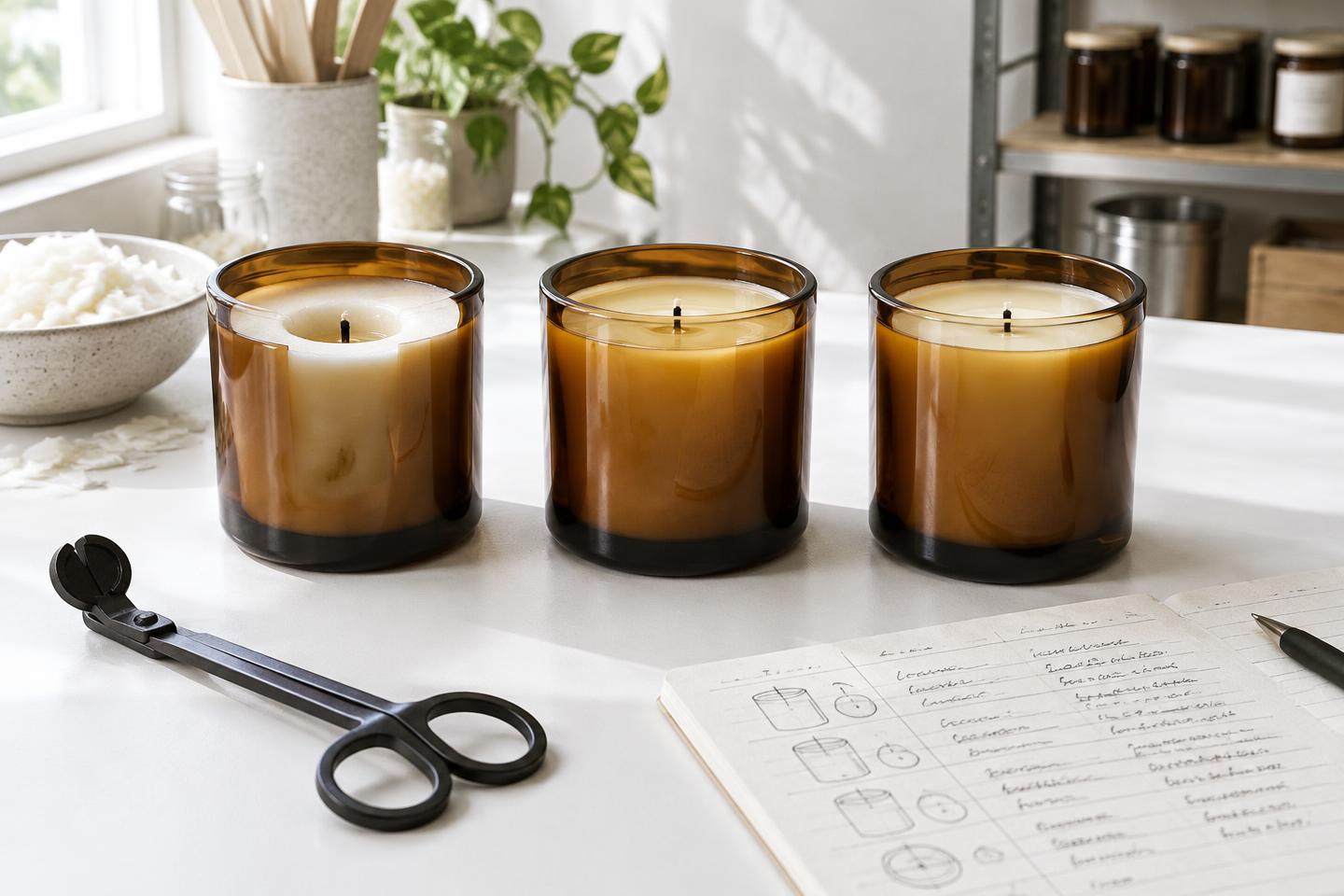

Tunneling, hang-up and melt pool are related but different

CandleScience's wick-sizing guide illustrates under-, appropriately and over-wicked examples, while its burn-test protocol emphasizes evaluating a candle from first to last burn. Supplier visuals are useful starting references, but your own exact materials still require testing.

Why the first-burn rule is incomplete

The common instruction that a candle must reach a full melt pool on its first burn compresses a multi-variable test into one pass/fail moment. Vessel geometry changes as the wax level falls. Heat retained by the vessel can also change. That means a candidate that looks conservative at the top can behave differently halfway down, and a candidate that races to the edge early may become too aggressive later.

Do not read the example chart as permission to ignore severe tunneling. Its purpose is to show why trends are more informative than one checkpoint. Record remaining wax on the wall, flame behavior, pool depth, soot, mushrooming and vessel condition together. A wide pool with an unstable flame is not a successful result.

Test the recipe, not an isolated wick

• Use the exact production wax, fragrance oil, fragrance load, dye, vessel and wick attachment method.
• Measure the vessel's inside diameter and note non-cylindrical shapes; advertised capacity does not select a wick.
• Cure every candidate for the same interval and test under the same draft-free conditions.
• Trim and relight consistently, and never leave a burn test unattended.
• Photograph and measure at fixed checkpoints, then continue through the candle rather than stopping after the best-looking session.

A wick chart is a starting point, not a result. CandleScience's container-wicking guidance explicitly describes recommendations as candidates that still require testing. Dense fragrance, dye and other formula changes can alter performance. If the recipe changes, repeat the relevant tests.

Use a comparison grid instead of memory

The words in this table are deliberately qualitative. Your acceptance criteria should reflect the technical guidance and safety requirements applicable to the product. The U.S. Consumer Product Safety Commission's candle business guidance explains the role of voluntary ASTM candle standards, but a standards reference is not a substitute for competent testing or a guarantee that a formula is safe.

When should an existing candle be retested?

Retest after meaningful changes to wax, wick, fragrance, dye, vessel or process. Supplier reformulations and natural-material variation are additional reasons to monitor established products. Preserve the old recipe revision so a new result does not erase the evidence behind earlier batches.

WaxLogic's burn-test logs can connect observations to the product, recipe and production batch. Start with the broader wick-testing guide, keep the batch QC checklist beside your release process, and use the candle calculator for ingredient weights—not for selecting or approving a wick.
